CAD Data

Click on any download file first and enter your data to be able to download all files.

simalube 15 ml
Lubricator 15 ml, G 1/4“

simalube 30 ml
Lubricator 30 ml, G 1/4“

simalube 60 ml
Lubricator 60 ml, G 1/4“

simalube 125 ml
Lubricator 125 ml, G 1/4“

simalube 250 ml
Lubricator 250 ml, G 1/4“

simalube multipoint
Quick coupling for hoses Ø 4/2.7 mm

simalube IMPULSE connect
Pressure booster up to 10 bar, G 1/4"

290-10010
Bent connection 45°, R 1/4"

290-10020
Bent connection 90°, R 1/4“

290-10030
Rotary elbow (for hose Ø 8 mm)

290-10040
Bent connection 90°, R 1/4“, pivoted

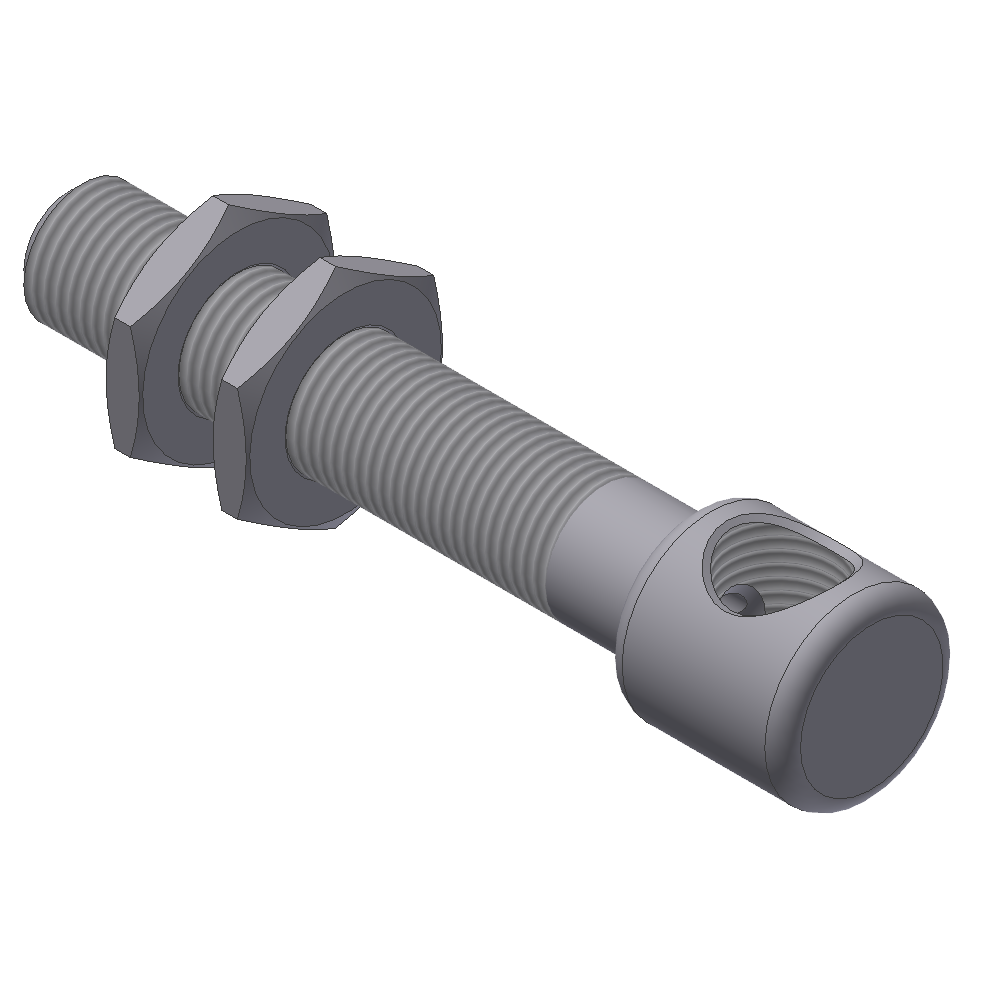

290-10050
Connection 90° with thread, 70 mm incl. 2 nuts

290-10070
Rotary elbow (for hose Ø 8 mm)

290-10080
Rotary elbow (for hose d=8 mm), D = G 1/4"

290-10100
Connecting nipple, G 1/4“ x G 3/8"

290-10110
Connecting nipple, G 1/4“ x G 1/2"

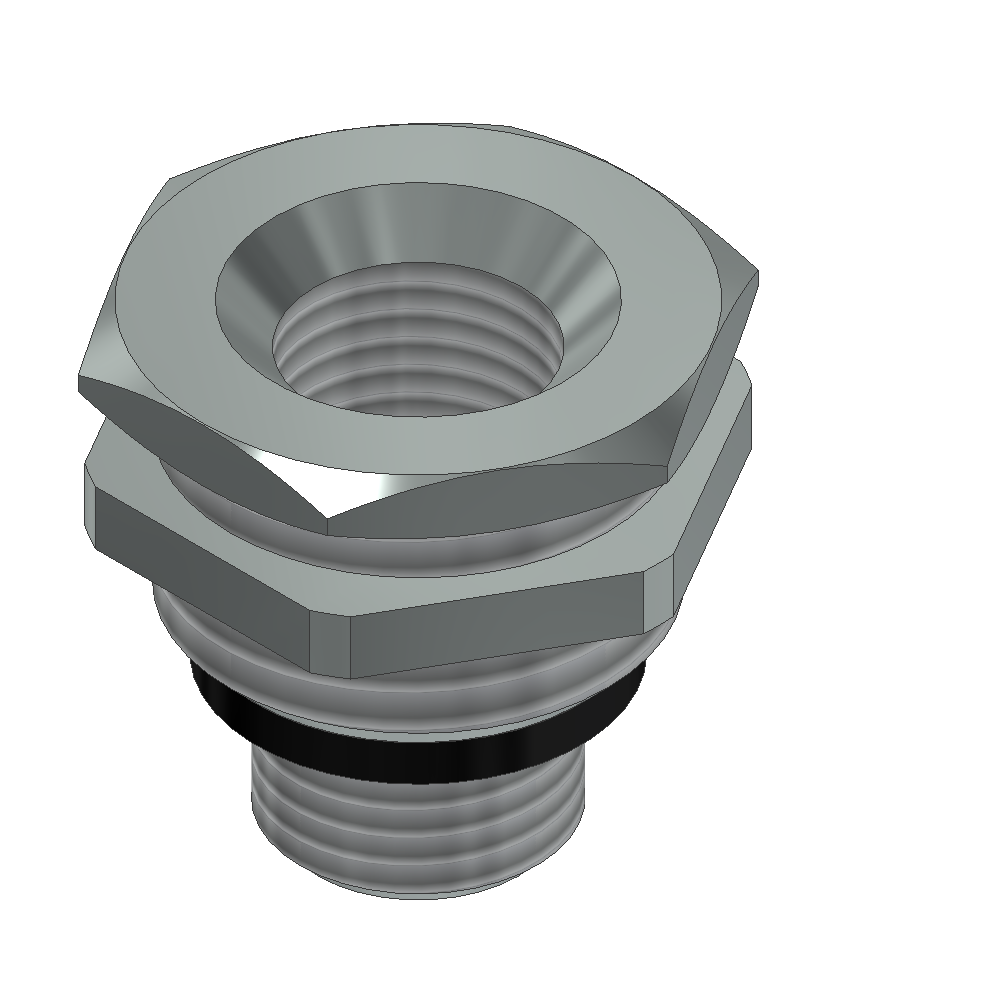

290-10150
Fixation nipple, G 1/2" - R 1/4" incl. 1 nut 1/2"

290-10200
Reducing nipple, G 1/4“ x G 1/8"

290-10210
Reducing nipple, G 1/4“ x G 1/4"

290-10220
Reducing nipple, G 1/4“ x M6

290-10230
Reducing nipple, G 1/4“ x M8

290-10240
Reducing nipple, G 1/4“ x M8 x 1

290-10250
Reducing nipple, G 1/4“ x M10

290-10260
Reducing nipple, G 1/4“ x M10 x 1

290-10270
Reducing nipple, G 1/4“ x M12

290-10280
Reducing nipple, G 1/4“ x M12 x 1.5

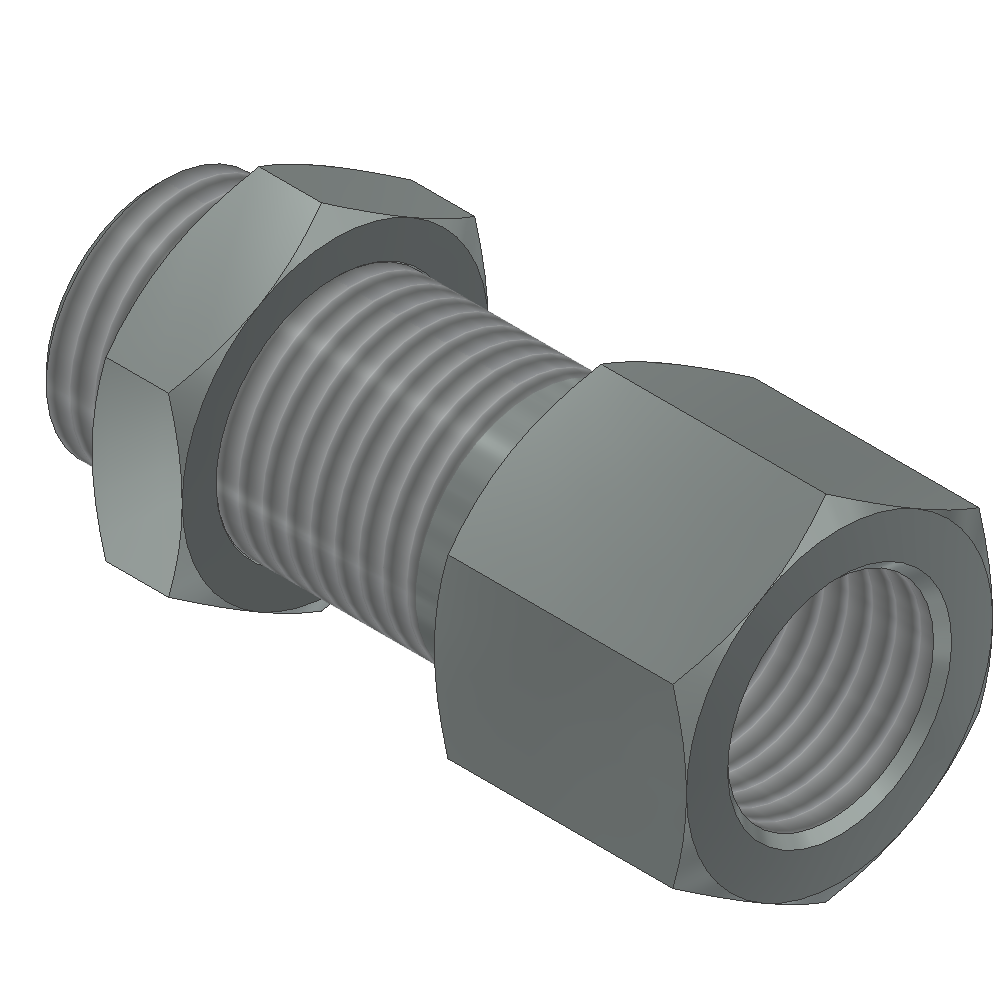

290-10450
Screwed connection with hole, 25 mm incl. 1 nut

290-10460

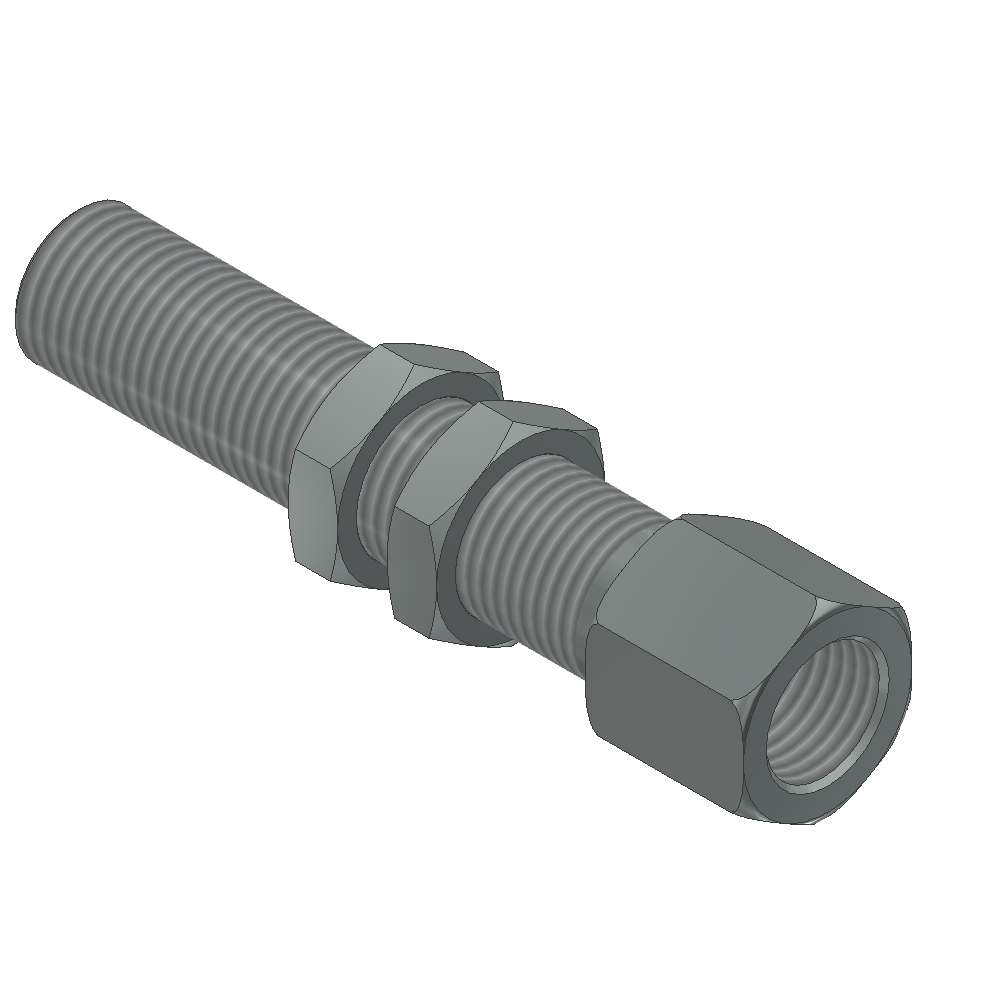

Screwed connection with hole, 60 mm incl. 2 nuts

290-10500
Y-manifold, R 1/4" (includes reduction 1021)

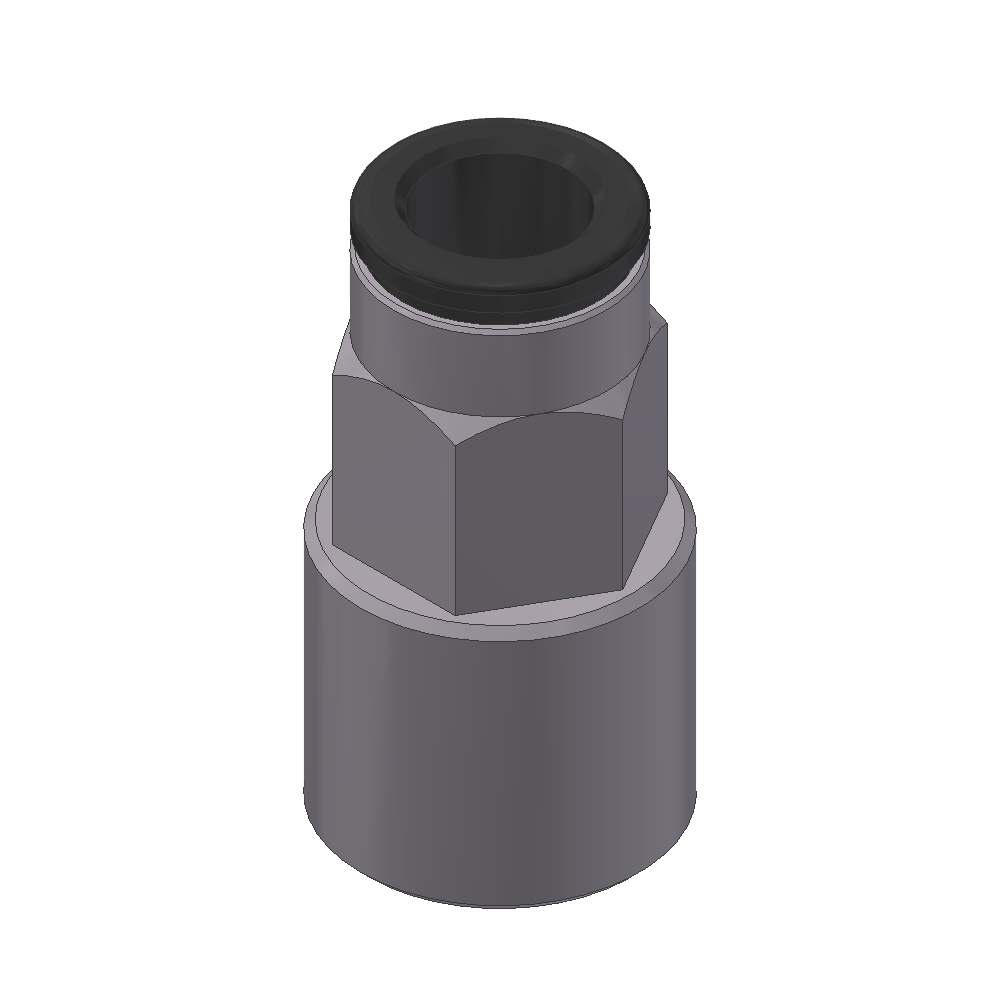

290-10600
Quick connection, female thread, for hose Ø 8 mm, G 1/4"

290-10700

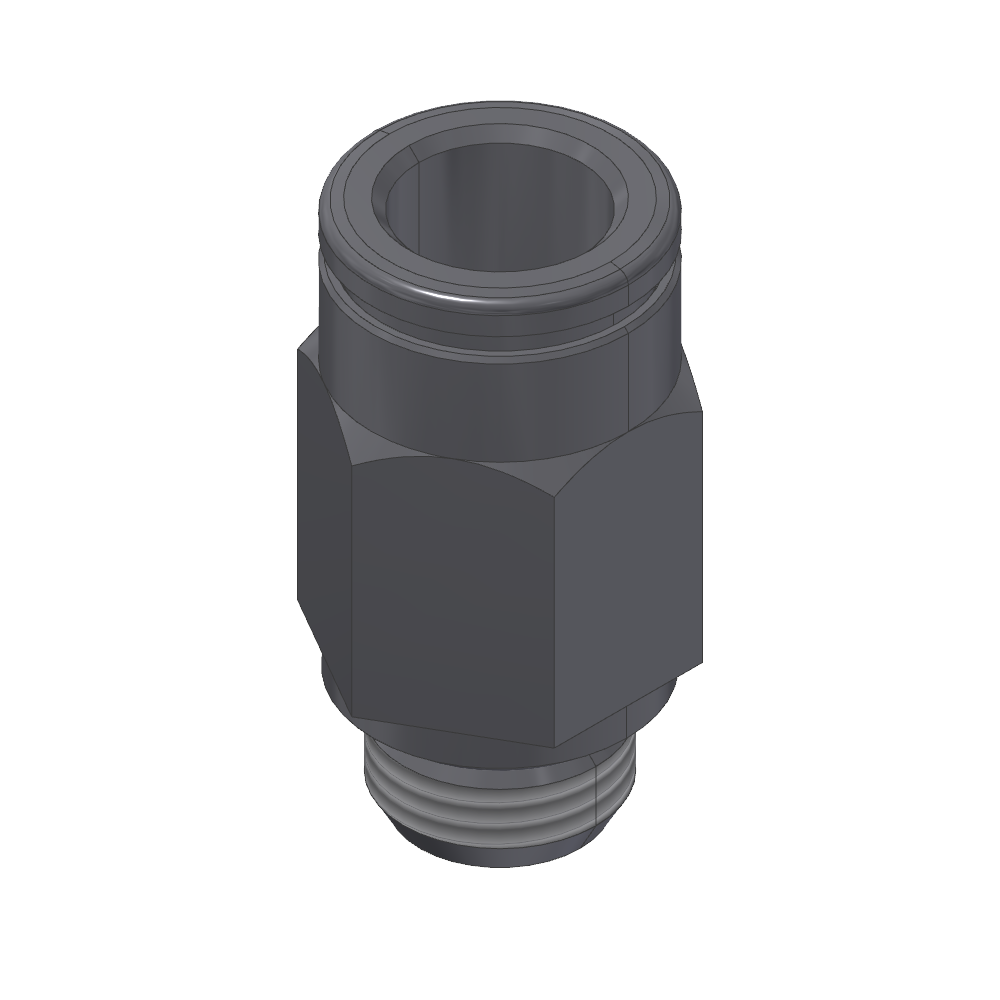

Quick connection, male thread, for hose Ø 8 mm, G 1/8"

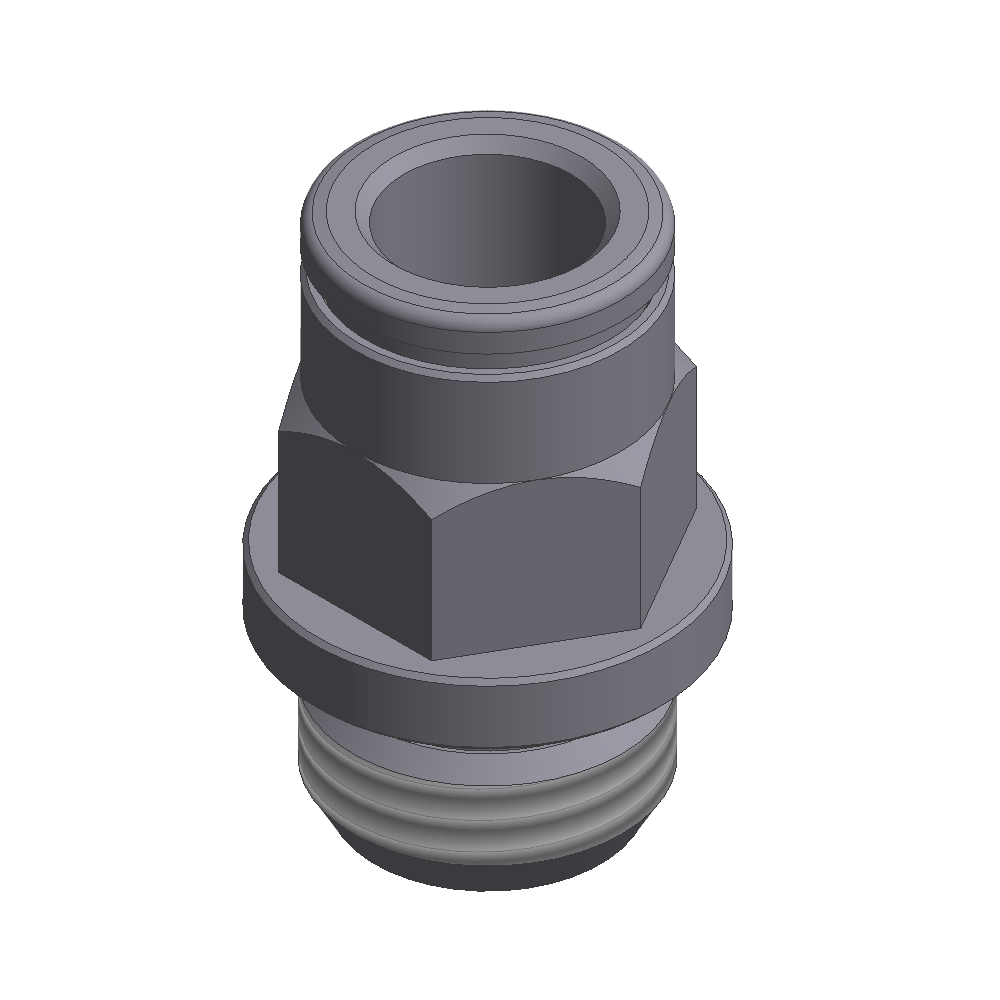

290-10710
Quick connection, male thread, for hose Ø 8 mm, G 1/4"

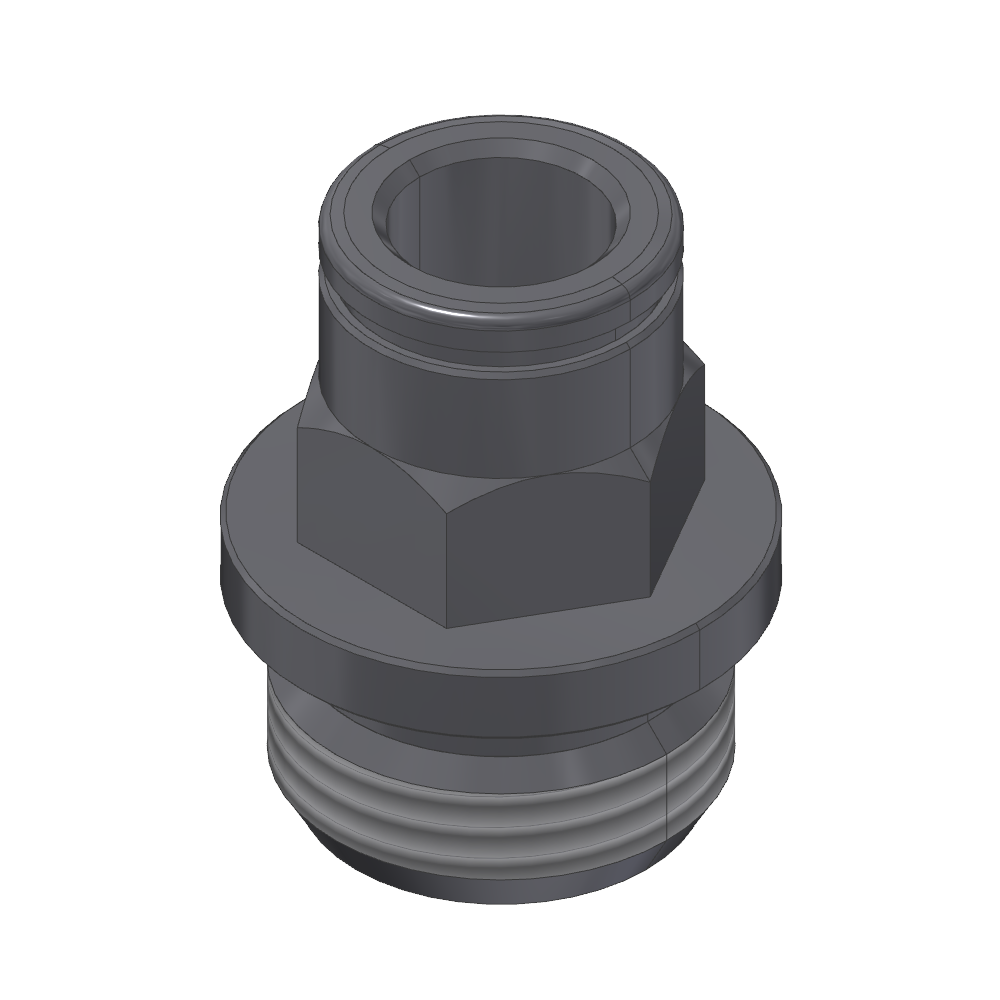

290-10720
Quick connection, male thread, for hose Ø 8 mm, G 3/8"

290-11210
Reducing nipple, G 1/4“ x UNF 1/4"

290-20000
Hose Ø 8/6

290-20100
Clamp, plastic, Ø 50 mm

290-20120
Adapter for Perma clamp, plastic, Ø 50 mm

290-20130
Clamp for round brush, Ø 28 mm

290-20140
Spacer to clamp for round brush (2013), 15 mm

290-20150
Clamp for simalube 15, plastic

290-20190
Magnetic fixture for clamps

290-20200
Non-return valve, G 1/8"

290-20210
Non-return valve G 1/4"

290-20340
Round brush Ø 25 x 45 mm, R 1/4"

290-20350
Square brush 40 mm, G 1/4“

290-20354
Square brush with lateral connection, 40 mm

290-20360
Square brush 70 mm, G 1/4“

290-20364
Square brush with lateral connection, 70 mm

290-20370
Square brush 100 mm, G 1/4“

290-20374
Square brush with lateral connection, 100 mm

290-20380
Square brush 25 mm, G 1/4“

290-20384
Square brush with lateral connection, 25 mm

290-20410
Round brush Ø 25 x 15 mm, G 1/4"

290-20440
Elevator brush 16-32 mm

290-20460
Guide rail brush, 40-50 mm, height 32 mm

290-20500
Brush 25 mm, high temperature

290-20510
Brush 40 mm, high temperature

290-20530
Brush 100 mm, high temperature

290-20750
Protection cap, for 30-125 ml

290-20760
Sun protection cover

290-20800
Mounting support for all simalube sizes

290-20810

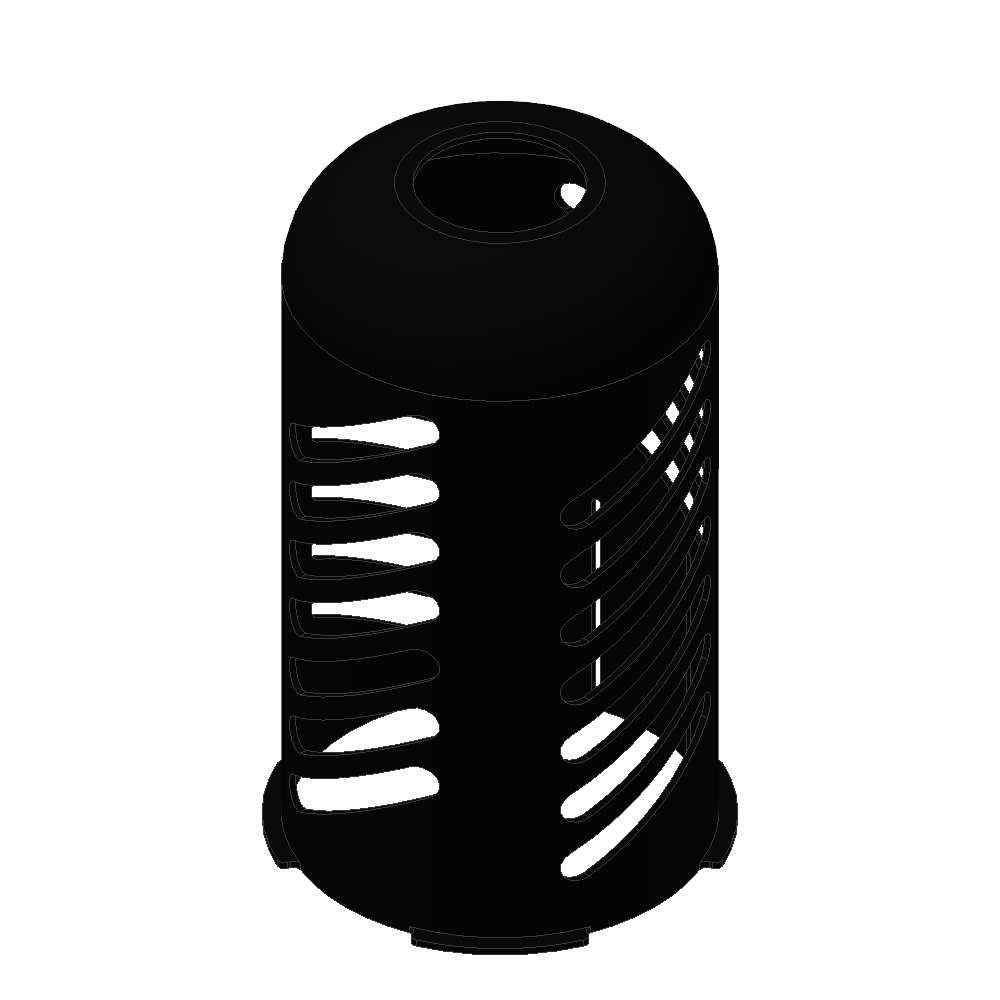

Protective cover (demands mounting support 2080) for simalubes 30/60/125 ml

290-20820

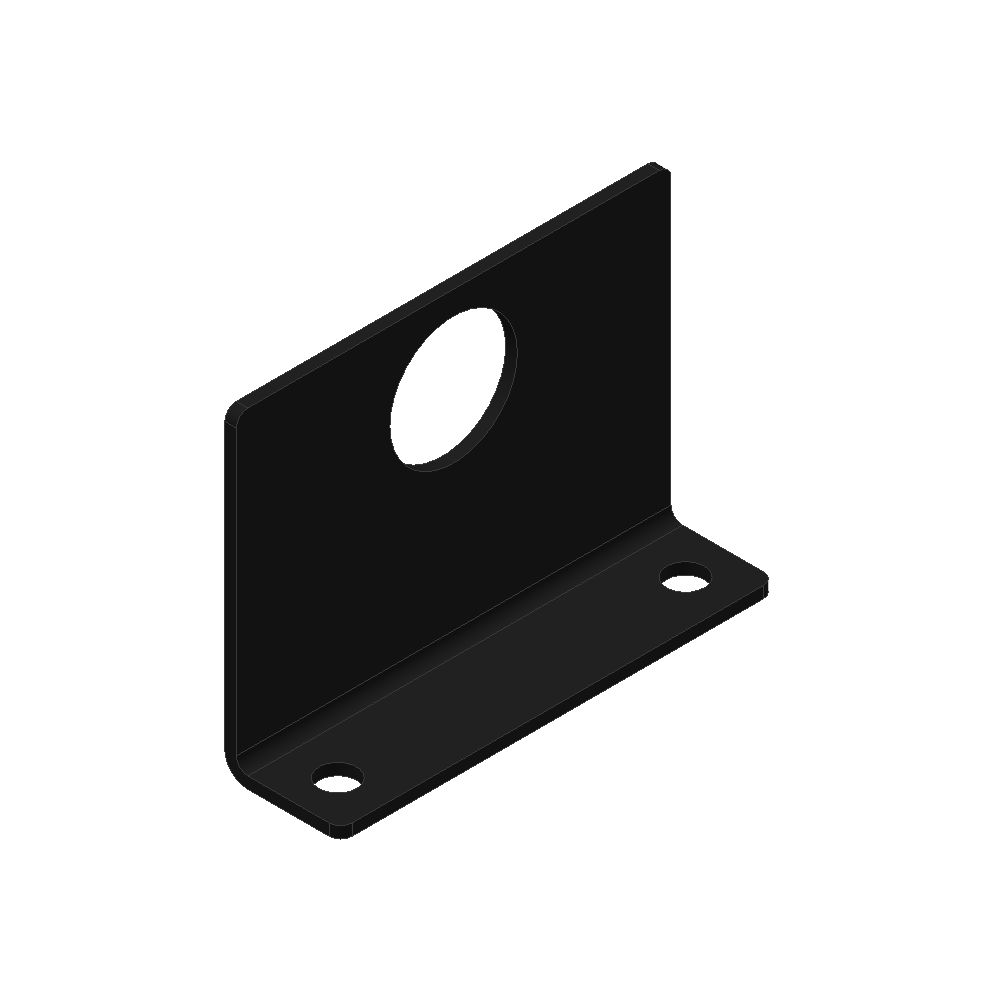

Bracket to mounting support 1-fold, length 75 mm

290-20830

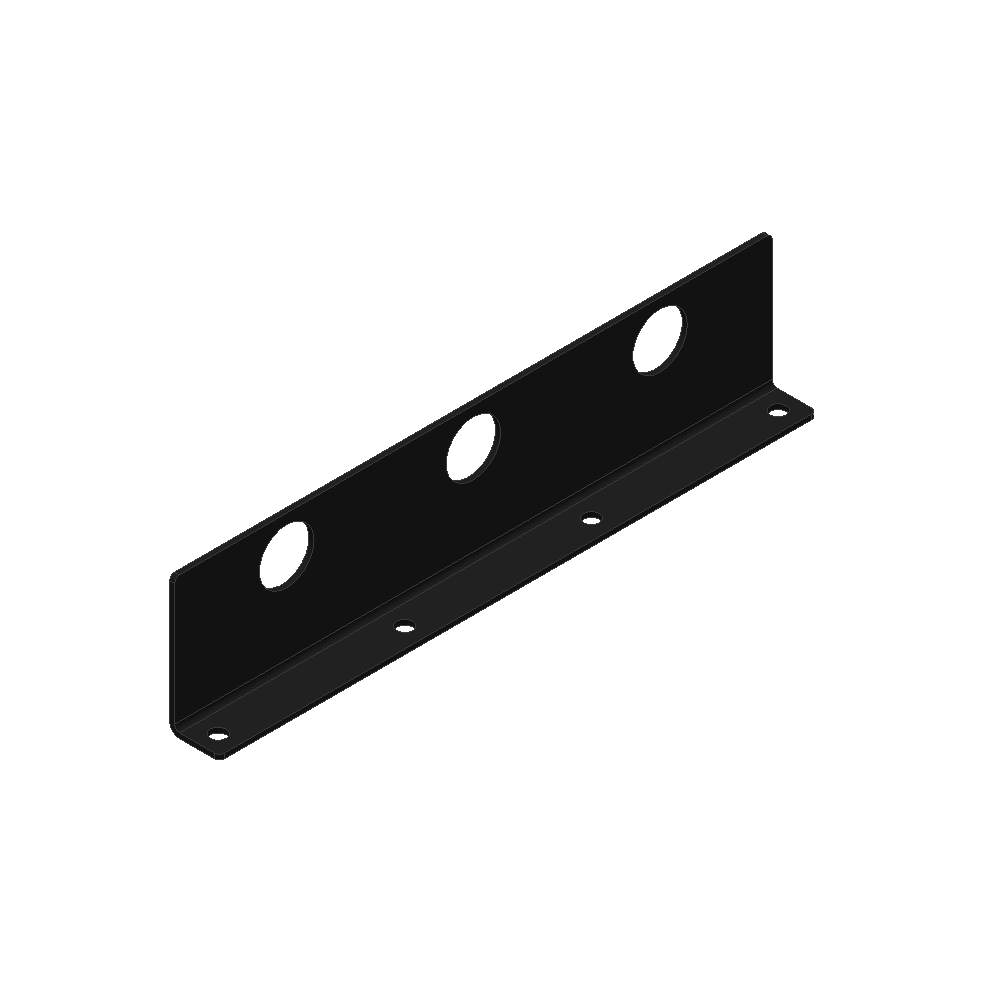

Bracket to mounting support 3-fold, length 240 mm

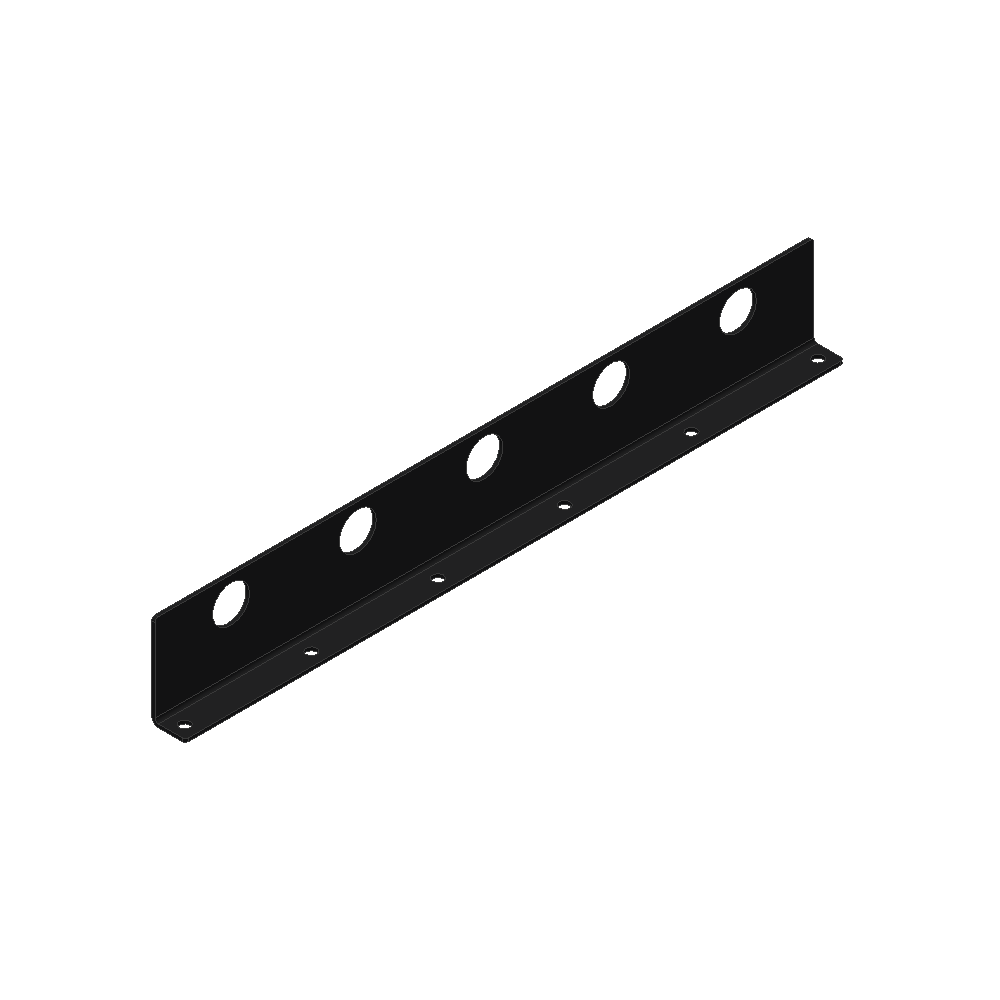

290-20840
Bracket to mounting support 5-fold, length 390 mm

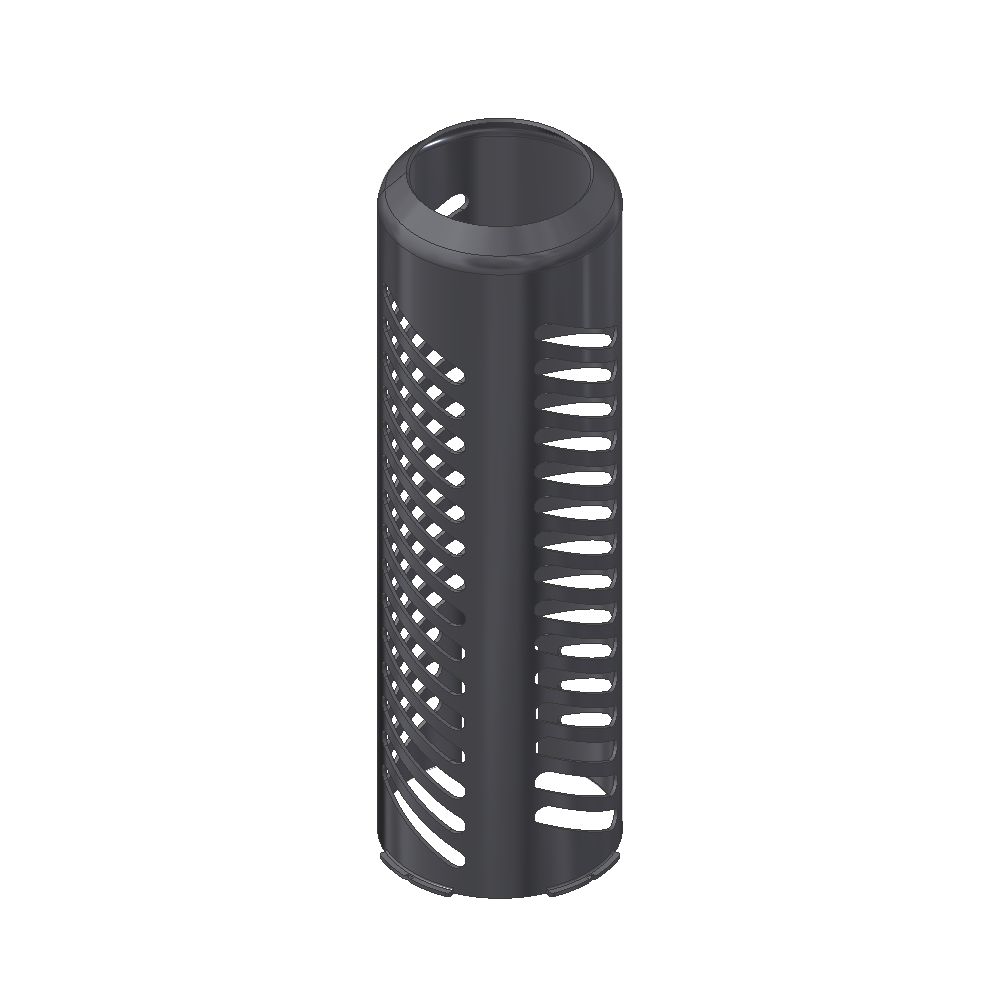

290-20850
Protective cover (demands mounting support 2080) for simalube 250 ml

290-20870
Bracket for simalube 15-60 ml

290-28000
Bracket, universal adjustable

290-30110
Filling nipple, R 1/4"

290-41000
4-fold adapter, G 1/2"

290-41010
4-fold adapter, G 1/4"

290-41020
2-fold adapter, G 1/2"

290-41030
2-fold adapter, G 1/4"
